Custom 3D Printed Speaker Pods for a 2005 Ford Mustang

Sometimes the problem is not the speaker. It is everything around it.

We recently worked on a 2005 Ford Mustang where the owner had a set of aftermarket speakers that simply were not going to fit properly inside the factory front door locations. The speakers were a good choice for the audio system, but the available space, mounting geometry, and door-panel clearance created a problem that could not be solved with a simple off-the-shelf adapter.

Rather than modify the doors unnecessarily or compromise the installation, we started by documenting the existing geometry. We 3D scanned and measured the factory speaker area, checked the available depth and surrounding clearances, and used that information to design a new set of custom speaker pods specifically for the Mustang.

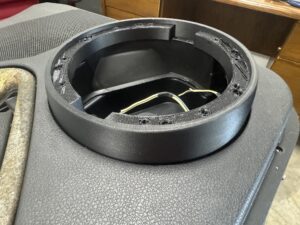

The new pods were designed to adapt the larger speakers to the original door location while maintaining the alignment and clearance needed for a clean installation. Once the design was finalized, we 3D printed a matched pair and test-fitted them against the door geometry.

This is one of the areas where 3D printing is especially useful. Older vehicles, custom audio systems, discontinued trim pieces, and non-standard aftermarket components often create situations where the correct adapter simply does not exist. Instead of forcing a generic part to work, a custom component can be designed around the actual vehicle and the actual hardware being installed.

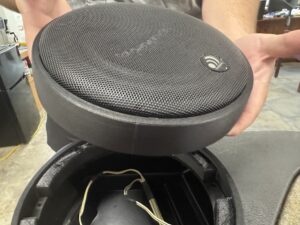

The finished speaker pods provided a solid mounting solution and allowed the owner to use the speakers he originally wanted without having to significantly modify the Mustang’s doors. Just as importantly, the finished installation looked intentional rather than improvised.

The owner was extremely happy with the result.

Projects like this are a good example of how 3D scanning, CAD design, and additive manufacturing can work together to solve relatively small but frustrating fitment problems. Whether it is an automotive speaker enclosure, gauge mount, trim component, bracket, duct, or discontinued plastic part, we can often reproduce or redesign components that are difficult or impossible to purchase.

If you have an automotive part that almost fits, no longer exists, or was never made for your application in the first place, Jaeger Technology Group can help turn the available space into a purpose-built solution.
